UF And STP Panels

• Application
• Residential, Commercial, Industrial Electrical Distribution

• Base Material
• Other, Metallic, Powder Coated

• Cabinet Material
• CRCA Sheet Steel

• Components
• DIN Rail, Neutral & Earth Bar, Brass Terminals

• Connectivity Type
• Screw Type Terminals

• Control System
• Manual

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Polycarbonate/Sheet Metal

• Current Rating
• 63A / 100A

• Dimension (L*W*H)
• Variable as per model (e.g., 380x260x100 mm for 8 Way)

• Features
• Double Door, Easy Wiring, High Insulation, Fire Retardant, Sleek Design

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP43 or IP54

• Material
• Other, Polycarbonate, Fire Retardant Material

• Maximum Output Current
• 100A

• Operating Voltage
• 240 / 415V

• Panel Type
• Surface & Flush Mounted

• Product Type
• Other, UF NG & UF NG Plus Distribution Boards

• Protection Class
• Class II

• Protection Level
• Other, IP43 (UF NG), IP54 (UF NG Plus)

• Rated Current
• 63A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 240-415V AC

• Standard
• IEC 60947-3, IS 8623

• Surface Color
• Other, White / Grey

• Surface Finish
• Other, Matte Finish

• Thickness
• 1.2 mm

• Way
• 4W, 6W, 8W, 12W, 16W, 18W (Single/Double Door)

• Application
• Wastewater Treatment Plants, Pumping Stations

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Overload Relay, Contactors, Timers, Relays

• Connectivity Type
• Wired

• Control System
• Automatic / Manual

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 630A

• Dimension (L*W*H)
• Custom as per requirement

• Display Type
• Other, Digital/Analog Meters

• Features
• Corrosion Resistant, Dust Proof, Modular Design, Sturdy Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS), Powder Coated

• Maximum Output Current
• 630 Amps

• Operating Voltage
• 415V AC

• Panel Type
• Floor Standing / Wall Mounted

• Product Type
• Other, Wastewater Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 630A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Other, Powder Coated Glossy

• Thickness
• 1.6 mm to 2.0 mm

• Way
• 3 Way, 4 Way & Custom

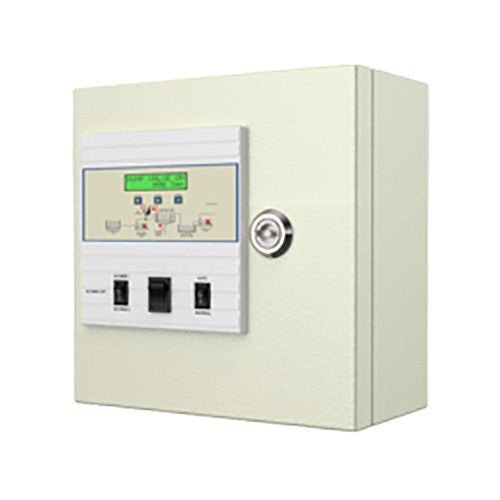

• Application
• Sewage & Effluent Treatment Plants

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Selector Switch, Voltmeter, Ammeter, Indication Lamps, CTs, Relays, Terminal Blocks

• Connectivity Type
• Field Wiring / Remote Interface

• Control System
• Automatic / Manual

• Cooling System
• Natural / Forced Air

• Cover Material
• Other, Mild Steel with Glass/Metal Door

• Current Rating
• Variable up to 630A

• Dimension (L*W*H)
• 1000 x 800 x 300 mm (Customizable)

• Display Type
• Other, Analog/ Digital

• Features
• Robust Construction, Rust Proof, Long Service Life, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Wall/ Floor Mounted

• Product Type
• Other, STP/ETP Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 250A - 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439-1 & 2

• Surface Color
• Other, RAL 7035 Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm - 2 mm

• Way
• 3 Way to 12 Way
