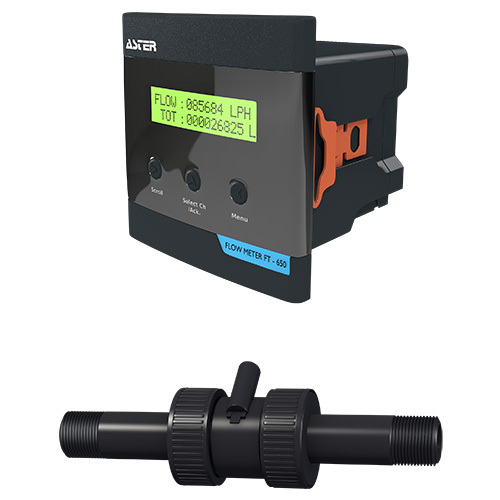

Full Bore Online Digital Flow Meters

• Equipment Type
• Full Bore Electromagnetic Flow Meter

• Accuracy
• 0.5 % of reading

• Application Media
• Water, Clean Liquids

• Capacity
• Industry Standard

• Color
• Blue & Black

• Connecting Type
• Flanged Ends

• Connectivity Type
• Terminal Block

• Connector
• Screw Terminal

• Current Range
• 4-20 mA

• Cut Size
• 25 mm NB

• Diameter
• 25 NB (1 Inch)

• Dimension (L*W*H)
• Approx. 210 x 160 x 120 mm

• Display Type
• Other, LCD Digital Display

• Flow Rate
• 0.5 m3/h - 7 m3/h

• Frequency
• 50/60 Hz

• Housing Material
• Powder Coated Metal

• Humidity %
• up to 95% RH

• Input
• Flow Liquid

• Language
• English

• Length
• 160 mm

• Load Capacity
• Suitable up to 16 Bar

• Material
• Epoxy Coated Steel / SS304

• Measurement Range
• 0.5 m3/h - 7 m3/h

• Measuring Units
• m3/h, LPM, Cum

• Model
• FT 650

• Mounting
• Flange Mounting

• Operating Temperature
• 0C to 60C

• Output
• 4-20 mA, Pulse

• Power Consumption
• < 10 Watts

• Power Supply
• 230V AC / 24V DC

• Pressure Range
• up to 16 Bar

• Process Connection
• ANSI/DIN Flange

• Protection
• IP 65

• Range
• 0.3 m/s to 10 m/s

• Resolution
• 0.001 m3/h

• Response Time
• < 1 Sec

• Sensitivity
• High

• Sensor Type
• Electromagnetic

• Signal Type
• Isolated Current / Pulse

• Stability
• 0.1%

• Storage Temperature
• -20C to 80C

• Temperature Range
• 0C to 60C

• Velocity Range
• 0.3 - 10 m/s

• Equipment Type
• Full Bore Electromagnetic Flow Meter

• Accuracy
• 0.5% of Reading

• Application Media
• Water, Wastewater, Conductive Liquids

• Capacity
• Up to 500 m3/h

• Color
• Blue

• Connecting Type
• Flanged Ends

• Connectivity Type
• Wired

• Connector
• Terminal Block

• Current Range
• 4-20 mA

• Cut Size
• 50 mm

• Diameter
• 50 NB (Nominal Bore)

• Dimension (L*W*H)
• Approx. 275mm x 200mm x 250mm

• Display Type
• Other, LCD Alphanumeric

• Flow Rate
• 30-250000 LPH

• Frequency
• 50Hz

• Housing Material
• Mild Steel with Epoxy Coat

• Humidity %
• Up to 95% RH

• Input
• 230V AC Power

• Language
• English

• Length
• 270 mm

• Load Capacity
• Up to 10 Bar

• Material
• Mild Steel (MS) with Epoxy Coating

• Measurement Range
• 0 - 99999 m3

• Measuring Units
• m3/h, LPH, LPM

• Model
• FT 650

• Mounting
• Flanged

• Operating Temperature
• 0C to 60C

• Output
• 4-20 mA, RS485 Modbus

• Power Consumption
• < 5 VA

• Power Supply
• 230V AC, 50Hz

• Pressure Range
• Up to 10 Bar

• Process Connection
• ANSI/DIN Standard

• Protection
• IP 65

• Range
• 0.3 - 10 m/s

• Resolution
• 0.001 m3

• Response Time
• < 1 sec

• Sensitivity
• 0.5%

• Sensor Type
• Full Bore Magnetic

• Signal Type
• Pulsed / Analog Output

• Stability
• 0.1%

• Storage Temperature
• -20C to 70C

• Temperature Range
• 0C to 60C

• Velocity Range
• 0.3 to 10 m/s
